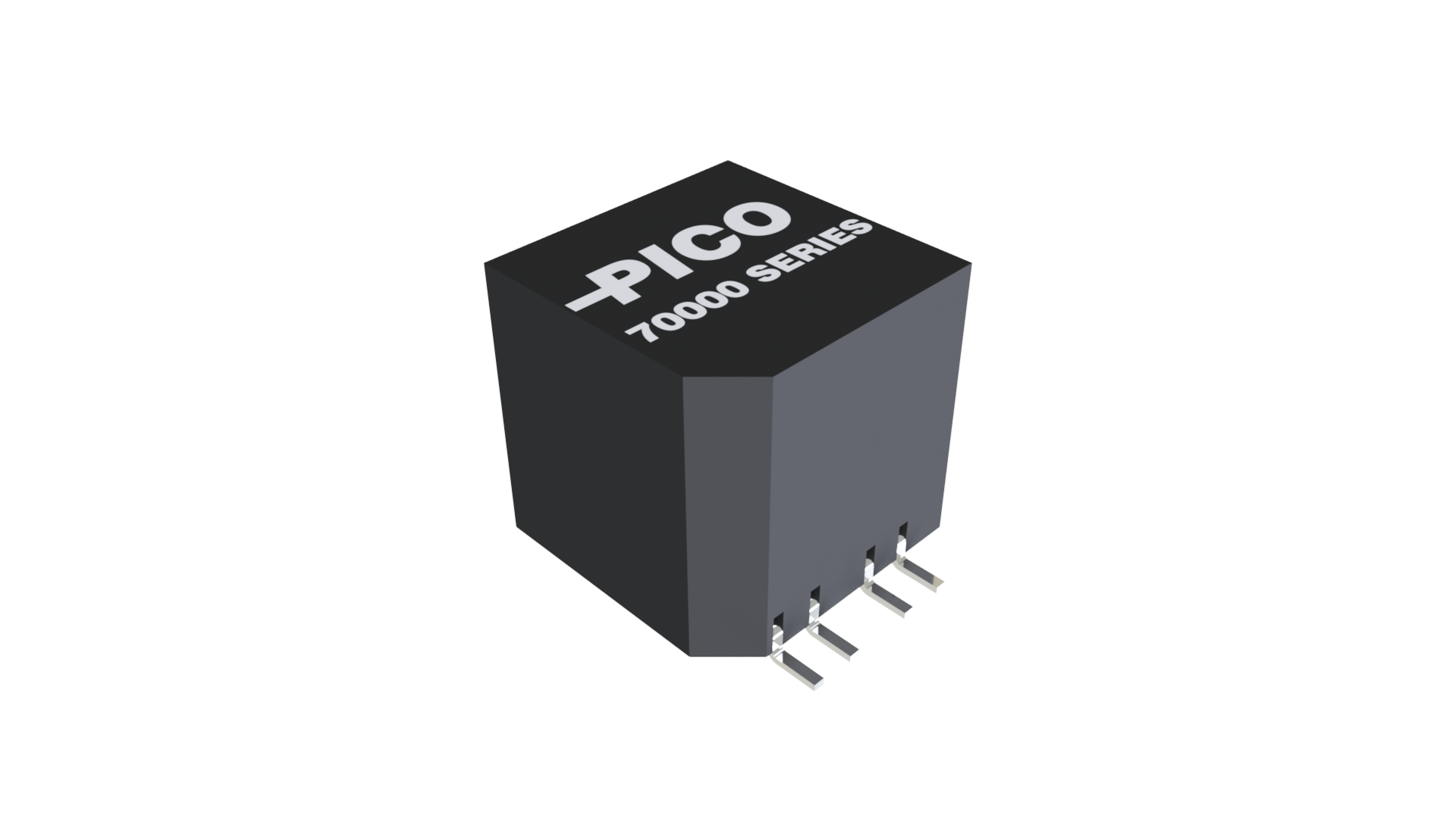

70003

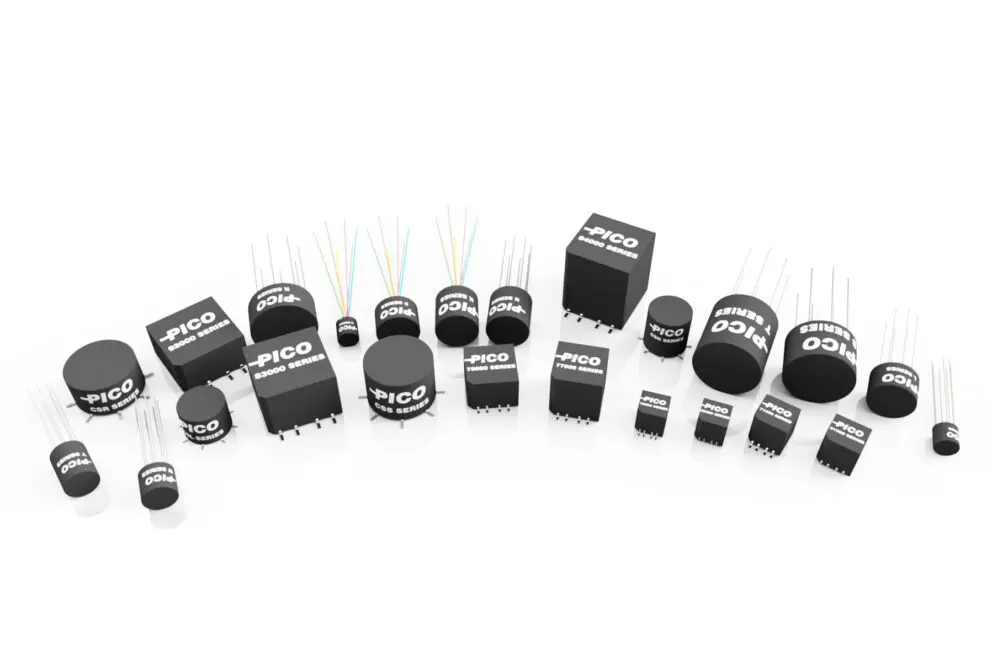

Series F, G, 70000 & 80000 – Audio Transformer
Specifications
MountingSquare SMT -
Gull Lead
Frequency
Range (±3 dB)400 Hz to 250 KHz
≥ 1kHz
Maximum Power (W)0.125
≥ 400Hz
Power (W)0.02
Primary
Impedance (Ω)10
Secondary
Impedance (Ω)10
Turns Ratio
(Prim/Sec) Parallel Connection2:1
Primary
Unbalanced DC Current (mA)11.5
Primary DC
Resistance (Ω)1.1
Secondary DC
Resistance (Ω) Parallel0.34
Dielectric
Withstanding Voltage (Vrms)200
Size (L x W
x H) inches0.31" x 0.31" x 0.34"
Moisture
Sensitivity Level3
CaseGlass Reinforced
Polymer
ConstructionEncapsulated
Manufactured
toMIL-PRF-27
Magnetic
ShieldingYes
Description
The F & G and 70000 & 80000 series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole with insulated leads option, or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.
