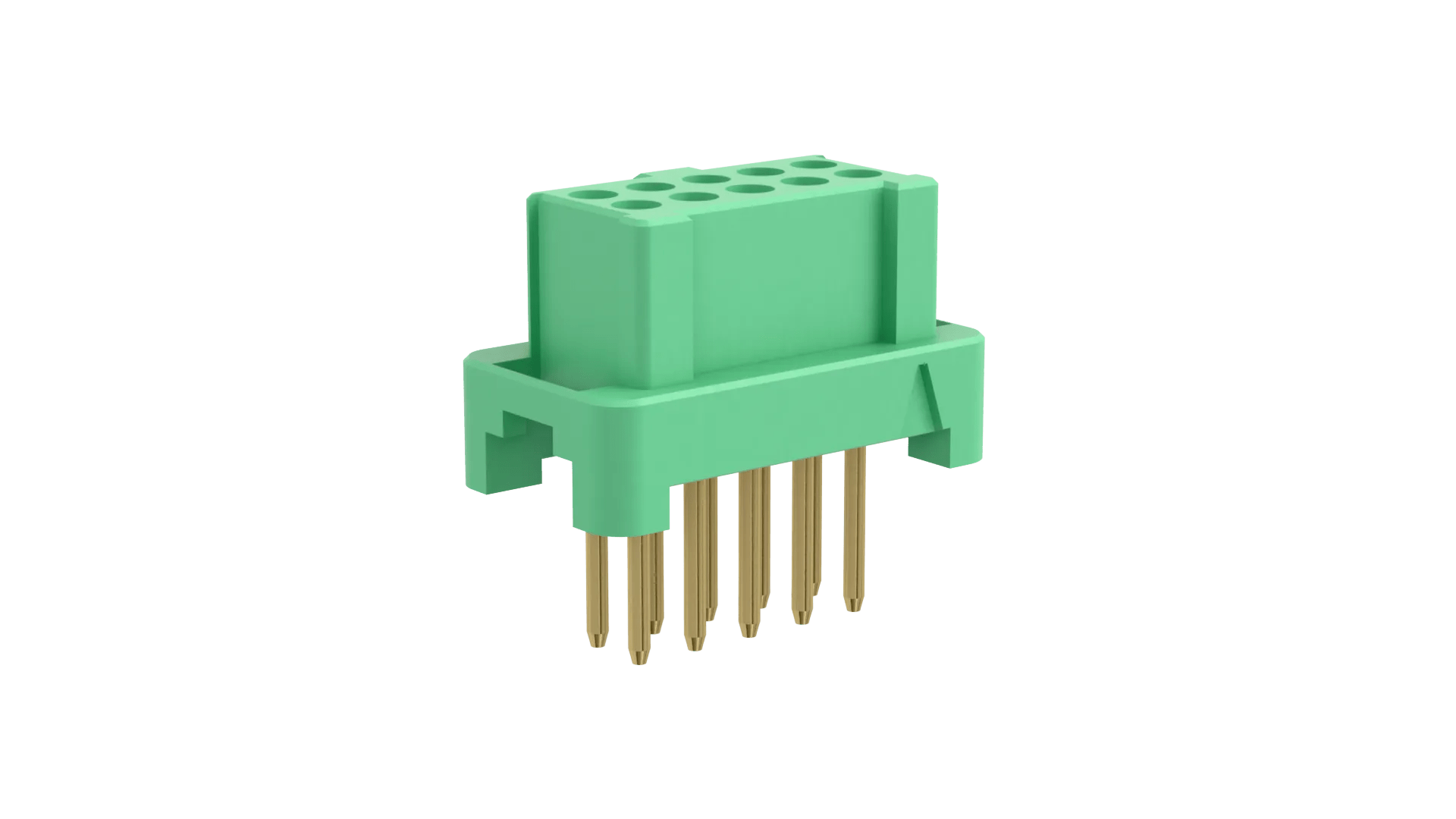

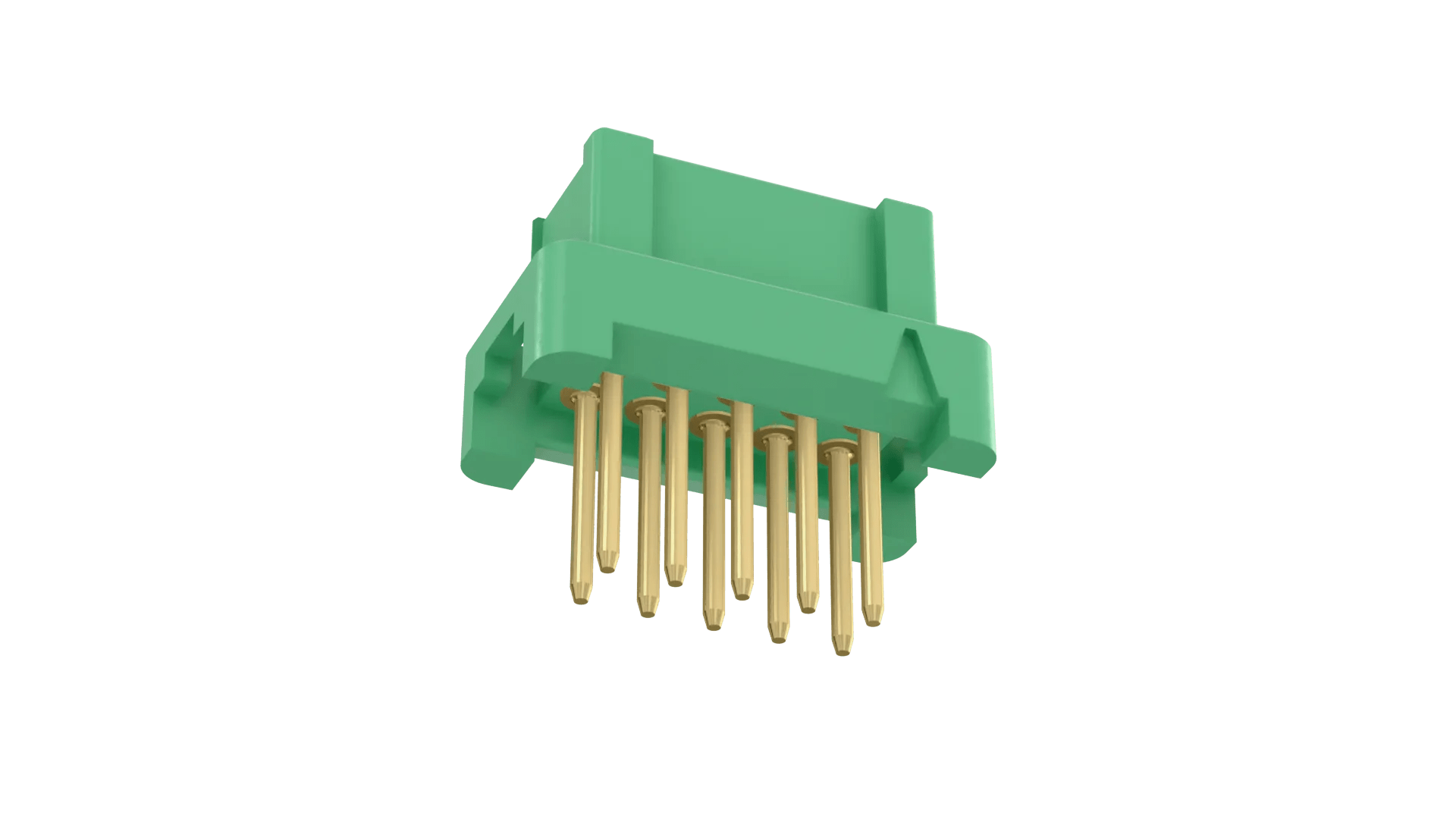

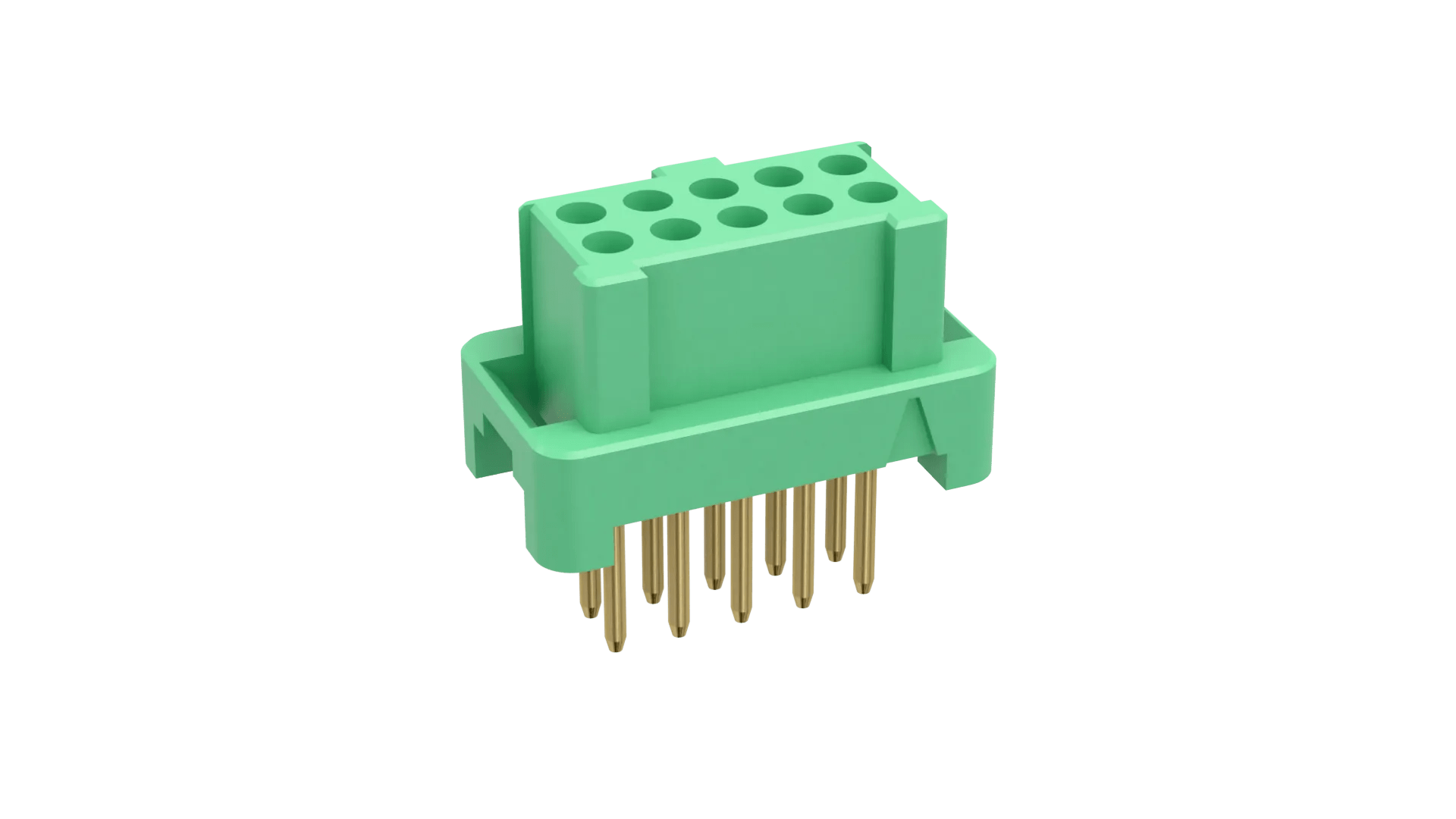

Product Characteristics

• End Stackable:

  No

• Latching Style:

  Compatible with latches

• Mating Pin Size:

  Ø0.4mm

• Number of Rows:

  2

• Connector Orientation:

  Vertical

• Country of Origin:

  GB

• Side Stackable:

  No

• Number of Signal Contacts:

  10

• Operating Temperature:

  -65°C to +150°C

• RoHS Status:

  RoHS Compliant (2015/863/EU) with Exemption 6c

• Current Rating:

  2.8A max individual contact, 2A max simultaneous (25°C)

• Soldering Data:

  Max Solder Temperature: 260°C for 10 seconds

• Polarised:

  Yes

• Cuttable:

  No

Materials

• Finish / Plating on Contact Surface:

  Gold

• Housing Material:

  Polyamide (Nylon) 4T

• Base Material of Contact:

  Beryllium Copper

• Flammability Rating:

  UL94V-0

• Packaging Style:

  Tape and Reel

• Finish / Plating on Termination:

  Gold

• Housing Colour:

  Green

Dimensions

• Contact Pitch:

  1.25mm (0.049")

• Weight:

  0.399g

• Dimensions:

  8.80 x 4.90 x 8.25

• PC Tail Length:

  3.00mm

• Height of Connector above PCB:

  5.25mm
